1、最常用的微操配件之一；
2、经典、耐用。
注意：
不包含与显微镜的连接部件。
如果需要连接配件，需要根据
显微镜型号另行配置。
首页>仪器>模式动物相关>线虫实验室相关仪器>手动显微操作仪
商品优势
MN-151

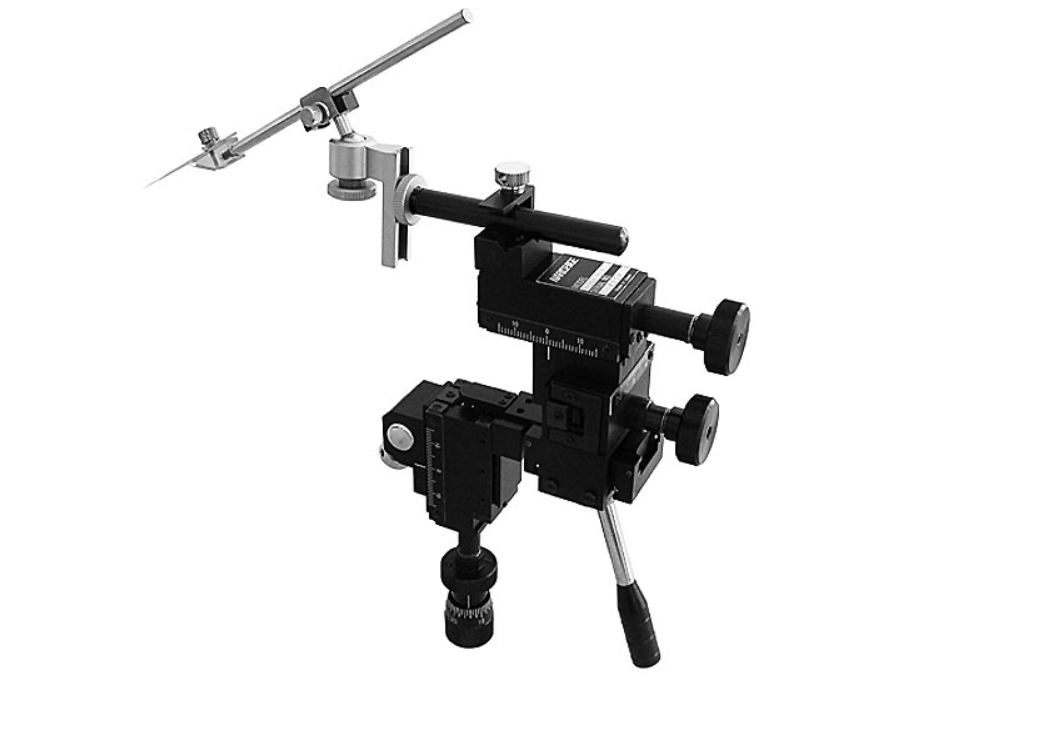

Three-Axis Coarse/Fine Joystick-Type Micromanipulator
Narishige's MN-151 is a lightweight, 3-axis mechanical micromanipulator which has coarse movements in the X, Y, and Z directions. In addition to the 3 coarse axes of movement, the MN-151 also incorporates fine, joystick-controlled movements in the X-Y plane. A knob with 5 um gradations provides fine mechanical movement in the Z axis.
The MN-151 is very versatile, and can be mounted in a variety of orientations on both the left and right sides of a microscope stage. It can be used to manipulate the primary needle holder in applications such as Drosophila, C. elegans, Xenopus, and Zebrafish microinjection. It also can be used in other applications such as mammalian oocyte microinjection, where it can be used as a versatile holding-pipette manipulator and for Yeast Tetrad microdissection.
*Please note that the P-1A Height Adjustment Plate (not included) is required to attach the MN-151 to Narishige's bracket systems. A needle holder, such as our MINJ-4, Narishige's HI-7, H-7 or HI-9, also needs to be purchased separately.
Specification
| Accessories included | B-8B Ball Joint | |
| Movement range | Coarse | X25mm, Y20mm, Z25mm |
| Fine movement: Z axis 8mm Full rotation of fine knob 500um Minimum graduation 5um | ||
| Joystick control 1:150 - 1:15 (X-Y plane movement ratio) | ||
| Dimensions/Weight | W95 x D90 x H110mm, 470g | |
